Does the app send my repository content anywhere?

No. Files are read with the viewing user's own Bitbucket permissions and rendered in the browser with a bundled copy of Mermaid. The app declares no external network access, has read-only repository scope, and stores nothing.

Do Mermaid diagrams render in Bitbucket pull requests?

Not currently. The viewer works in the repository source view — any branch, tag or commit — but not inside pull-request diffs.

Mermaid Diagrams for Bitbucket Documentation

Q: Does Bitbucket support Mermaid diagrams?

Not out of the box. Bitbucket Cloud shows a Mermaid diagram as a plain code block. Mermaid Diagrams for Bitbucket, a Forge app from the Atlassian Marketplace, adds a Mermaid Viewer to the repository file view that renders .mmd and .mermaid files and every ```mermaid fenced block in Markdown files, on any branch, tag or commit.

Q: How do I render a Mermaid diagram in a Bitbucket README?

Install Mermaid Diagrams for Bitbucket on the workspace, put the diagram in a ```mermaid fenced code block in the .md file, open the file in the repository and switch to the Mermaid Viewer. The Markdown renders with the diagrams inline.

Bitbucket Cloud does not render Mermaid out of the box — a diagram in a README shows up as a block of text. Mermaid Diagrams for Bitbucket fixes that in two places:

A Mermaid Viewer for the repository file view. Open a .mmd, .mermaid or .md file on any branch, tag or commit, switch to the viewer, and diagrams render — standalone for diagram files, inline between the headings and paragraphs for Markdown. Six themes, zoom and pan, and a Source tab for the raw text.
A Mermaid Editor page in the repository menu: a syntax-highlighted editor with a live preview, six starter templates and the same themes — the place to draft a diagram before committing it.

Rendering happens in your browser with a bundled copy of Mermaid. The app declares no external network access, reads the repository with your own permissions, and stores nothing.

The Mermaid Editor in a Bitbucket repository: a sequence diagram source on the left, the rendered diagram with zoom controls on the right — The Mermaid Editor — source on the left, live preview on the right.

Getting Started

1 Install Mermaid Diagrams for Bitbucket from the Atlassian Marketplace on your Bitbucket workspace and approve the single read-repository permission.
2 Open any .md, .mmd or .mermaid file in a repository's Source view.

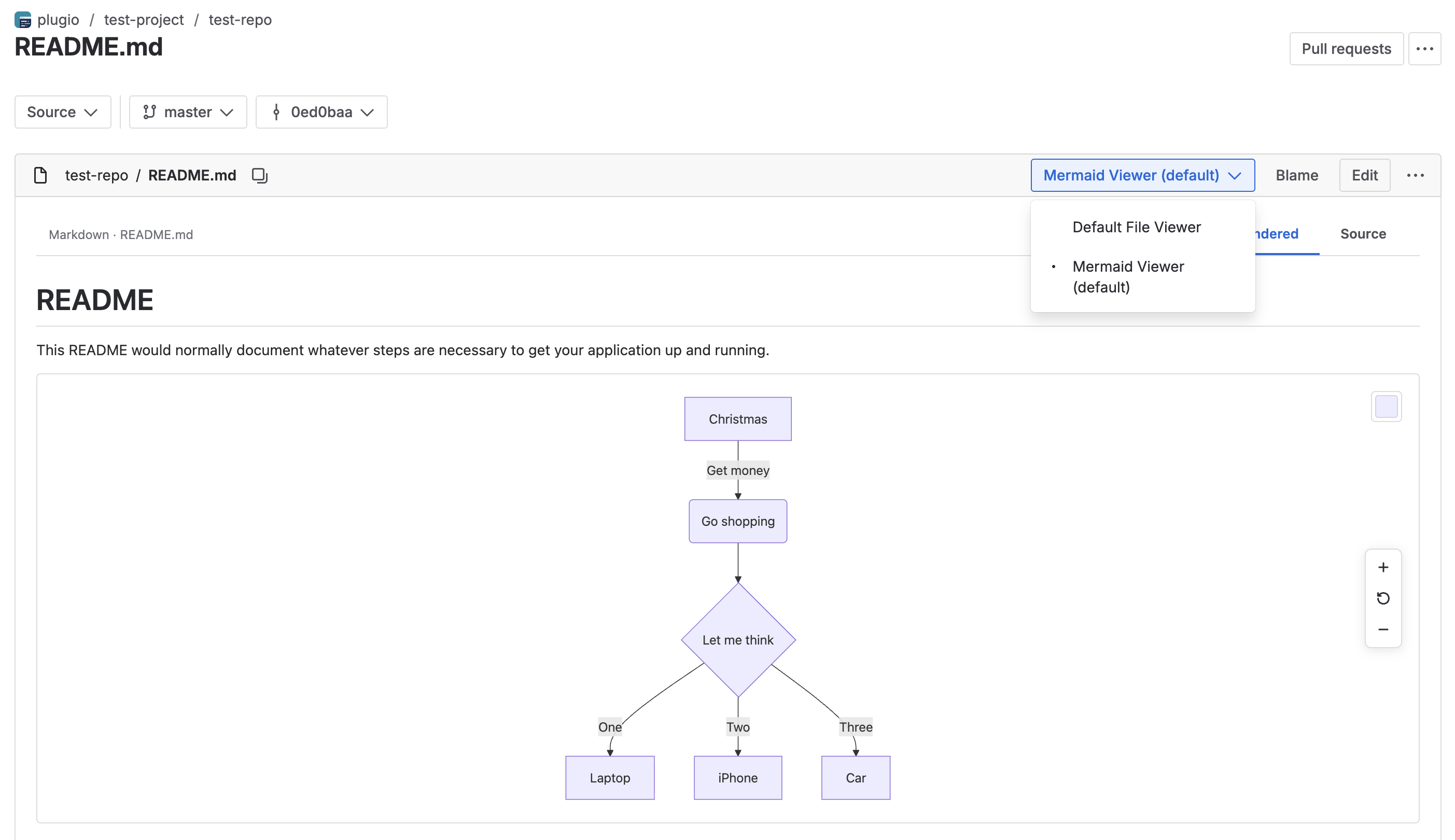

3 Switch the file view to Mermaid Viewer. Diagrams render immediately.
4 To draft a new diagram, open Mermaid Editor from the repository's left navigation.

The Mermaid Viewer

The viewer replaces the code view for supported files. A toolbar names the mode (Mermaid · path or Markdown · path) and offers two tabs: Rendered and Source — the raw file text, for copying or checking what a failed block contains.

Supported files

Extension	How it renders
`.mmd` · `.mermaid`	The whole file is one diagram.
`.md`	Rendered as GitHub-flavoured Markdown — headings, lists, tables, links, images, blockquotes, code — with every ```mermaid block replaced by its diagram, in place.

The file is read at exactly the commit you are viewing, so branch and tag views, and historical commits, all render their own version.

Markdown & fenced blocks

A block is treated as a diagram when its fence is exactly ```mermaid — lowercase, with no extra words on the fence line. Any other fence stays a code block, and text between diagrams renders as normal Markdown. Markdown HTML is sanitised before it is shown; Mermaid runs in strict mode, so diagrams can't embed HTML or scripts.

If one diagram in a file has a syntax error, only that block shows an error box; the rest of the document still renders.

Themes

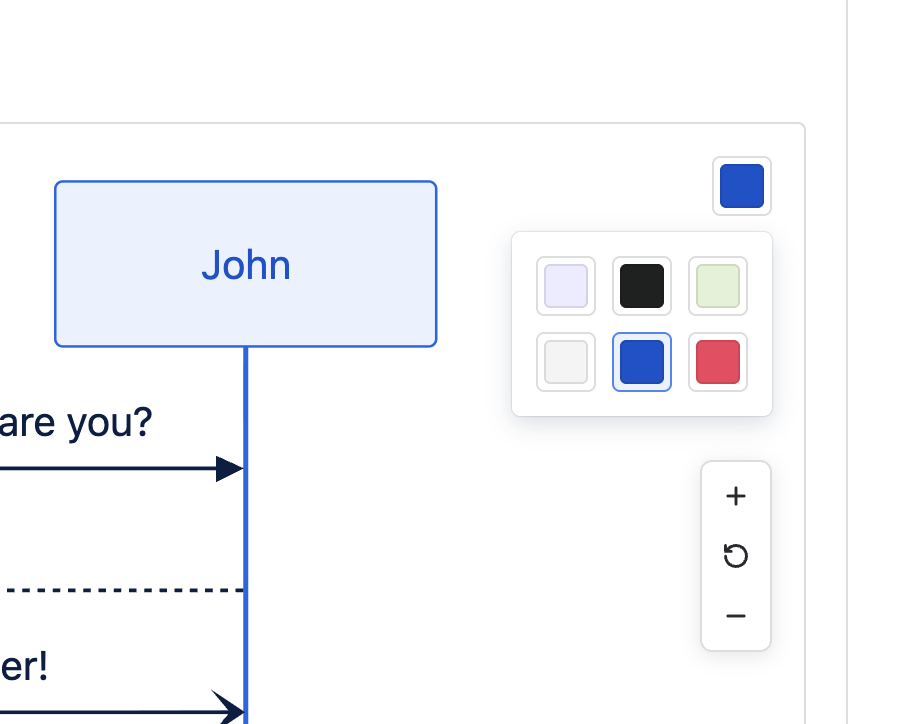

The swatch button beside a diagram opens the theme grid: Default, Dark, Forest, Neutral, Ocean, Rose. Default, Dark, Forest and Neutral are Mermaid's built-ins; Ocean and Rose are Plugio palettes. Your choice is remembered in the browser and applies to every diagram on the page at once; the first time, it follows your OS light/dark setting. The viewer's own chrome follows Bitbucket's colour mode.

Zoom & pan

Every diagram sits in a pannable canvas — drag to move it — with a right-hand rail of zoom in, reset and zoom out buttons (0.1× to 10×). Mouse-wheel zoom is deliberately off so the wheel keeps scrolling the page. In the viewer a diagram is capped at 400 px tall; zoom and pan to inspect a large one.

The Mermaid Editor

Mermaid Editor in the repository's left navigation opens a full-page editor: a 500 px sidebar on the left, the live preview in the centre, the zoom rail on the right.

Control	What it does
Editor tab	A syntax-highlighted Mermaid editor with line numbers. The preview re-renders about a quarter of a second after you stop typing.
Config → Theme	The six themes, applied live to the preview (same choice as the viewer).
Config → Templates	Flowchart, Sequence, Class, State, Gantt, Pie Chart — a starter snippet each. Loading one replaces the editor content.
Preview	Renders the diagram on a dot grid; syntax errors show as a red box with Mermaid's message. Empty editor → "Type Mermaid syntax in the editor to preview."
Zoom rail	Zoom in · Reset · Zoom out, drag to pan.

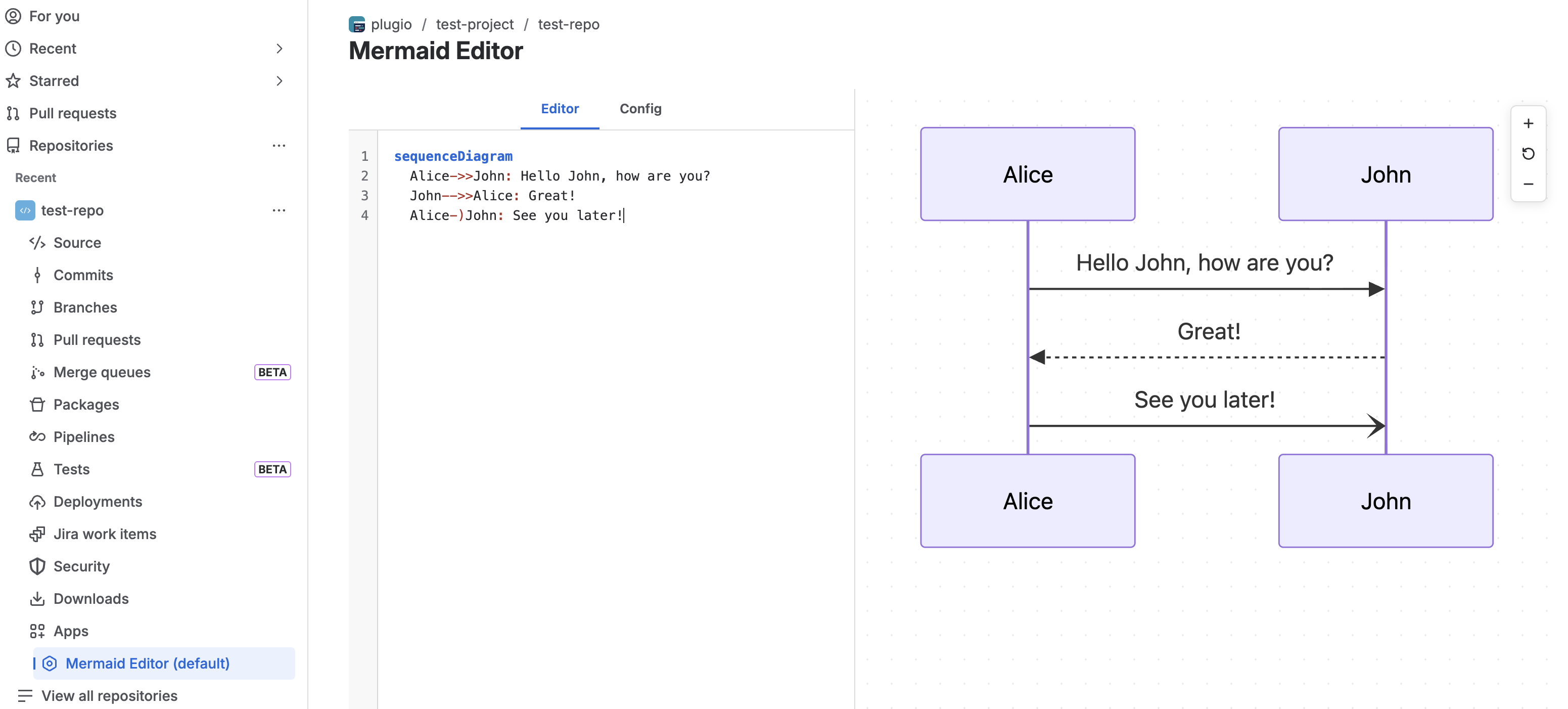

The Mermaid Editor page: code editor with line numbers on the left, live preview on a dot grid in the centre, zoom rail on the right — The editor — code left, live preview centre, zoom rail right.

The editor is a scratchpad, not a file. It has read-only access to the repository, so it doesn't save or commit. When the diagram looks right, copy the source into a .mmd file or a ```mermaid block in your Markdown and commit it as usual — the viewer takes it from there. Content in the editor is not kept when you leave the page.

Diagram Types

The app bundles Mermaid 11, so everything Mermaid renders, it renders — no allow-list:

Flowchart — processes, decision trees, pipelines
Sequence — service interactions, API calls, user journeys
Class, State, Entity Relationship — models, machines, schemas
Gantt, Timeline, Kanban — plans and boards
Pie, XY chart, Quadrant, Sankey, Radar — data
Git graph, C4, Architecture, Block, Packet — engineering diagrams
Mindmap, Requirement, User journey, and the rest of the Mermaid 11 catalogue

Because the app makes no network requests, diagram features that fetch remote resources — icon packs in architecture diagrams, remote images — won't load.

Example

In any Markdown file:

```mermaid
flowchart TD
    A[Push to main] --> B{Tests pass?}
    B -->|Yes| C[Deploy to staging]
    B -->|No| D[Notify author]
    C --> E[Manual approval]
    E --> F[Deploy to production]
```

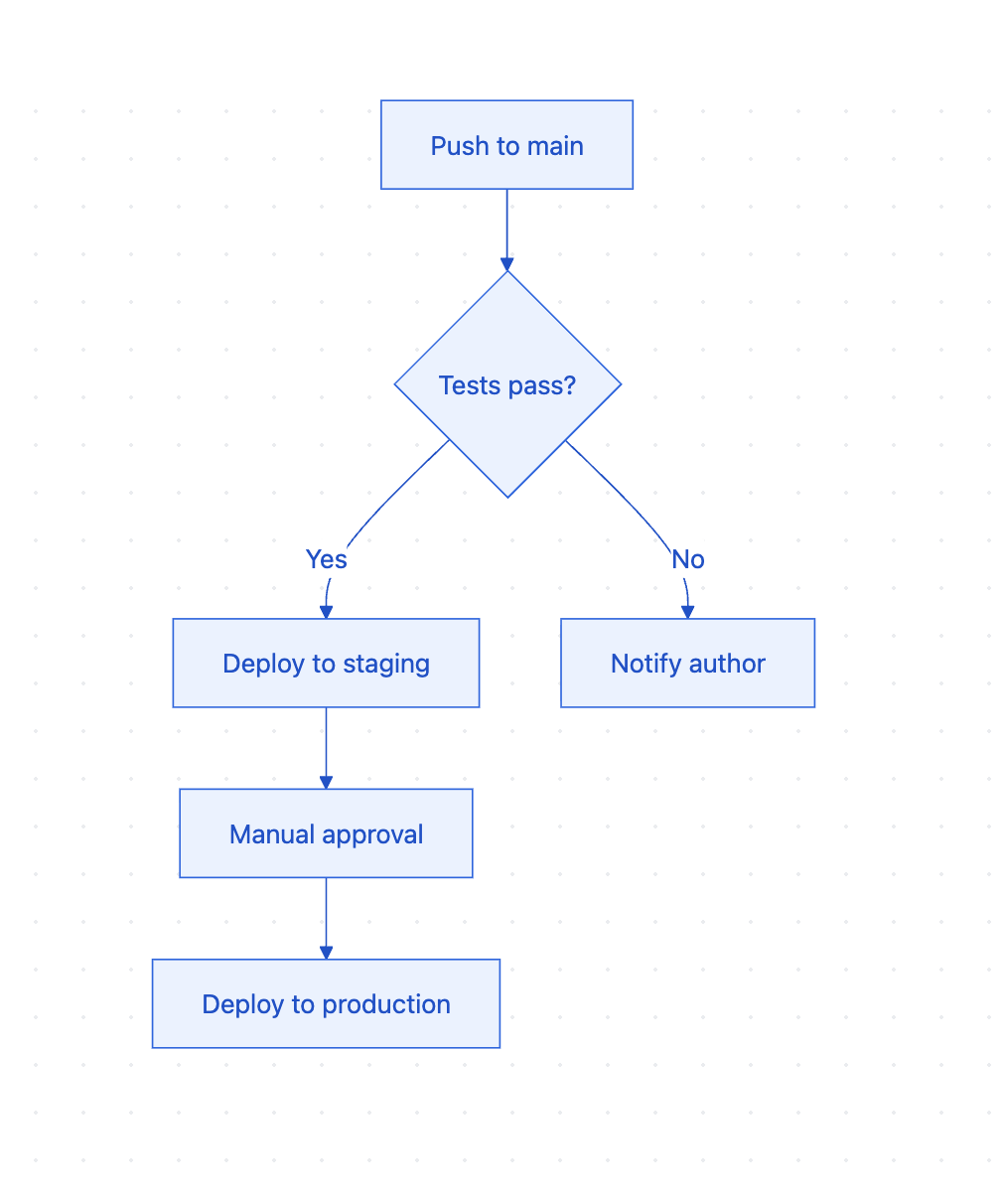

The example flowchart rendered in the viewer — The example above, rendered.

FAQ

Does Bitbucket support Mermaid diagrams?

Not out of the box — Bitbucket Cloud shows a Mermaid block as plain code. This app adds the rendering as an alternate file viewer, on any branch, tag or commit.

How do I render a Mermaid diagram in a Bitbucket README?

Put the diagram in a ```mermaid fenced block, open the README in the repository and switch to the Mermaid Viewer.

Do diagrams render in pull requests?

Not currently — the viewer works in the repository source view, not in PR diffs.

Does my repository content leave Bitbucket?

No. Files are read with your own permissions and rendered in the browser from a bundled Mermaid. The app declares no external network access, has a read-only repository scope, and stores nothing.

Can I save from the editor to the repository?

No — the app is read-only. Copy the source into a file and commit it.

Troubleshooting

The Mermaid Viewer option isn't offered for my file

The viewer matches files ending in .md, .mmd or .mermaid, lowercase. .markdown, .mdx or README.MD aren't matched — rename the file.

My diagram shows as a code block

The fence must be exactly ```mermaid — lowercase, nothing else on the fence line, and not an indented (four-space) code block.

"Mermaid render error"

Mermaid couldn't parse that block; the box shows its message and line number. Paste the block into the Mermaid Editor to fix it with a live preview. Other diagrams in the file are unaffected.

"Failed to fetch file (404 Not Found)"

The file no longer exists at that commit, or you don't have read access to it.

Icons or images in a diagram don't appear

The app makes no external requests by design; remote icon packs and images can't load.

My theme reset

The theme is remembered per browser. A new browser or cleared storage starts from your OS light/dark setting.

Support

Questions, feedback or a feature request? We answer fast.

Email: [email protected]
